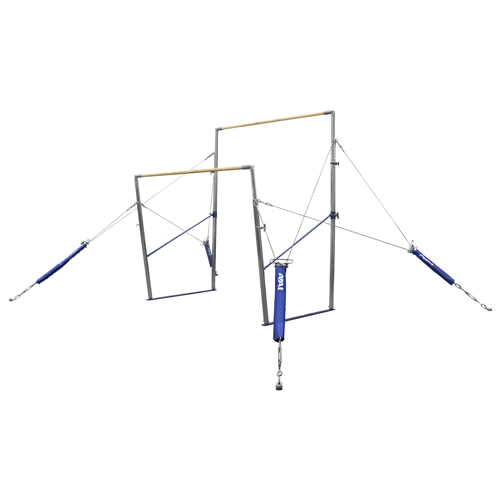

International Asymmetric Bars


Designed to easily show height markings for FIG compliant requirements during competition.

  • FIG Approved (407-126)
  • Meets USAG, NCAA® and NFHS competition specifications
  • Designed primarily for use in Elite level gymnastics programs
  • Uprights and bases are chrome-plated
  • Slide collar allows unit to exceed FIG bar-to-bar width specifications, adjusting from 90cm to 200cm
  • Height markings on the piston makes adjustments of the system more convenient and accurate
  • Fixed spreader bar helps ensure both bar heights are set correctly, saving time during set up
  • Low bar adjusts in height from 61? (155cm) to 72 7/8? (185cm)
  • High bar adjust in height from 92 ½” (235cm) to 104 ¼” (265cm)
  • Footprint measured from anchor points is 18′ x 13′ (5.5m x 4.9m)
  • Graphite X & E bars
  • Can be used with the Freestanding Uneven Bar Adapter and/or SRS System
  • Unit requires four floor anchors (not included)

Item Numbers

  • 407-126– International Asymmetric Bars with Graphite X Rails (FIG approved) – wt. 296 lbs. (135kg)
  • 407-326– International Asymmetric Bars with Graphite E Rails – wt. 296 lbs. (135kg)
